5MP 60x AI ISP Based Ultra Long Range Zoom Starlight Global Shutter Network at MIPI Dual Output Camera Module

Modelo

SG-ZCM5060NMI-OG

Sensor

Sensor ng Larawan

1/1.8" StarvisGlobal Shutter CMOS Sensor.

Mga Epektibong Pixel

Tinatayang 5.10 Megapixel

Lens

Haba ng Focal

20mm~1200mm, 60x Optical Zoom

Aperture

F2.92~F11.37

Larangan ng Pananaw

H: 19.04 ° ~ 0.32 °, V: 15.97 ° ~ 0.27 °, D: 24.67 ° ~ 0.42 °

Isara ang Focus Distansya

1m~50m (Wide~Tele)

Bilis ng Zoom

< 10s (Optical Wide~Tele)

DORI Distansya

(Tao)

Detect

Magmasid

Kilalanin

Kilalanin

17,532m

6,957m

3,506m

1,753m

Video

Compression

H.265/H.264B/H.264M/H.264.H/MJPEG

Kakayahang Pag-stream

3 batis

Resolusyon

Pangunahing stream: 50/60fps@2448 × 2048; 50/60fps@2688 × 1520; 50/60fps@1920 × 1080; 50/60fps@1280 × 720

Sub Stream1: 50/60fps@704 × 576; 50/60fps@352 × 288;

Sub Stream2: 50/60fps@1920 × 1280; 50/60fps@1280 × 720;

50/60fps@704 × 576

Audio

AAC(8/16kHz) / MP2L2(16kHz)

MIPI Video

50Hz: 50fps@4mp (2688 × 1520)

60Hz: 60fps@4MP (2688 × 1520)

Network

Network Protocol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Web Browser

IE, Edge, Firefox, Chrome

Gumagamit

Hanggang 20 user, 2 level: Administrator, User

Imbakan

Micro SD/SDHC/SDXC card (Hanggang 1TB) edge storage, FTP, NAS

Multicast

Suporta

Pag-upgrade ng Firmware

Tanging ang maaaring mag-upgrade ng firmware sa pamamagitan ng Network port.

Pangkalahatang Pangyayari

Paggalaw, Tamper, SD Card, Network

IVS

Tripwire, Cross Fence Detection, Panghihimasok, Inabandunang Bagay, Mabilis-Paglipat, Pag-detect sa Paradahan, Pagtatantya ng Pagtitipon ng Madla, Nawawalang Bagay, Loitering Detection.

Target na Pagkakaiba

Tao/Sasakyan

S/N Ratio

≥55dB

Pinakamababang Pag-iilaw

Kulay: 0.05Lux/F2.92; B/W: 0.005Lux/F2.92

Pagbawas ng Ingay

2D/3D/AI Noise Reduction

Exposure Mode

Auto, Aperture Priority, Shutter Priority, Gain Priority, Manual

Kabayaran sa Exposure

Suporta

Bilis ng Shutter

1/1~1/30000s

BLC

Suporta

HLC

Suporta

WDR

Suporta

White Balance

Auto, Manual, Indoor, Outdoor, ATW, Sodium lamp, Street lamp, Natural, One Push

Araw/Gabi

ICR(Auto/Manual)

Mode ng Pagtutok

Auto, Manual, Semi Auto, One Push AF

Electronic Defog

Suporta

Optical Defog

Suporta, ang 750nm~1100nm channel ay Optical Defog

Pagbawas ng init na Ulap

Suporta

I-flip

Suporta

EIS

Suporta

Digital Zoom

16x

Panlabas na Kontrol

2x TTL; Tugma sa SONY VISCA at Pelco Protocol

Interface

4pin Ethernet port, 6pin Power at UART port, 5pin Audio port,

30pin MIPI

Protokol ng Komunikasyon

SONY VISCA, Pelco D/P

Mga Kundisyon sa Pagpapatakbo

- 30 ° C ~+60 ° C/20% hanggang 80% RH

Mga Kondisyon sa Imbakan

- 40 ° C ~+70 ° C/20% hanggang 95% RH

Power Supply

DC 12V

Pagkonsumo ng kuryente

Static power: 5W, Sports power: 10W

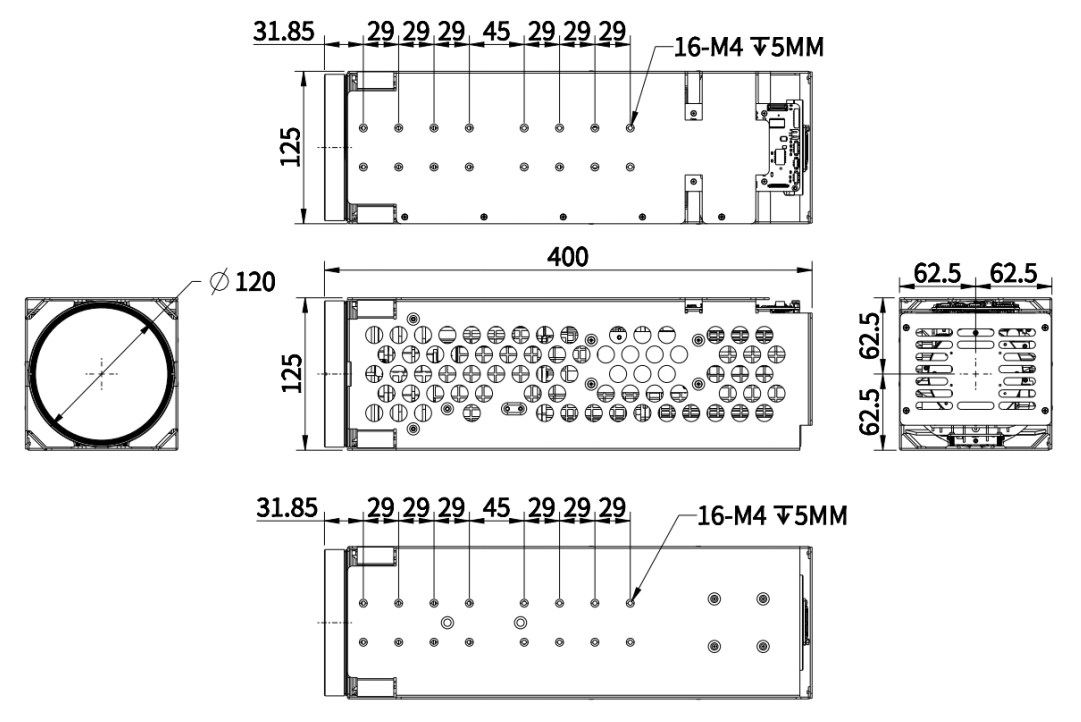

Mga Dimensyon(L*W*H)

400mm*125mm*125mm

Timbang

Tinatayang 5kg
