Pagtutukoy
| Modelo | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
| Sensor | Sensor ng imahe | 1/2″ SONY InGaAs Global Shutter SWIR Sensor IMX990 | 1/4″ SONY InGaAs Global Shutter SWIR Sensor IMX991 |
| Mga Epektibong Pixel | Tinatayang1.34MP | Tinatayang0.34MP | |
| Laki ng Pixel | 5μm | ||
| Lens | Haba ng daluyong ng tugon | 1000~1700nm | |
| ICR | Suportahan ang 2 mode: Malapad na banda: 1000~1700nmMakitid na banda: 1450~1700nm | ||
| Focal length | 17mm~510mm, 30x Optical Zoom | ||
| Aperture | F2.8~F5.5 | ||
| Larangan ng Pananaw | H: 21.3°~0.71°, V: 17.1°~0.57°, D: 27.1°~0.92° | H: 11.6°~0.37°, V: 9.3°~0.3°,D: 14.8°~0.47° | |
| Isara ang Focus Distansya | 1m~10m (Wide~Tele) | ||
| Bilis ng Zoom | Tinatayang7s (Optical Wide~Tele) | ||
| Video | Compression | H.265/H.264/H.264H/MJPEG | |
| Resolusyon | 25/30/50/60fps@1280×1024 | 25/30/50/60fps@640×512 | |
| Bit Rate ng Video | 32kbps~16Mbps | ||
| Audio | AAC / MP2L2 | ||
| LVDS na Video | 25/30/50/60fps@2MP (1920×1080) | ||
| Network | Imbakan | TF card (256 GB), FTP, NAS | |
| Network Protocol | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Suporta | ||
| Pag-upgrade ng Firmware (LVDS) | Tanging ang maaaring mag-upgrade ng firmware sa pamamagitan ng Network port | ||
| Pangkalahatang Pangyayari | Paggalaw, Tamper, SD Card, Network | ||
| IVS | Tripwire, Cross Fence Detection, Panghihimasok, Inabandunang Bagay, Mabilis na Gumagalaw, Pagtukoy sa Paradahan, Pagtatantya ng Pagtitipon ng Madla, Nawawalang Bagay, Loitering Detection. | ||
| Pagbawas ng Ingay | 2D/3D | ||
| Exposure Mode | Manual, Auto, Aperture Priority, Shutter Priority | ||
| Kabayaran sa Exposure | Suporta | ||
| Bilis ng Shutter | 1/1~1/30000s | ||
| Focus Mode | Auto/Manual/Semi Auto | ||
| Electronic Defog | Suporta | ||
| Pagbabawas ng Haze ng init | Suporta | ||
| I-flip | Suporta | ||
| EIS | Suporta | ||
| Digital Zoom | 16x | ||
| Panlabas na Kontrol | TTL | ||
| Interface | 4pin Ethernet port, 6pin serial at power port, 5pin Audio port.30pin LVDS | ||
| Protokol ng Komunikasyon | SONY VISCA, Pleco D/P | ||
| Mga Kundisyon sa Pagpapatakbo | -30~+60°C/20%~80%RH | ||
| Mga Kondisyon sa Imbakan | -40~+70°C/20%~95%RH | ||
| Power Supply | DC 12V | ||
| Power Consumption (TBD) | Avg: 6W;Max: 11W | ||

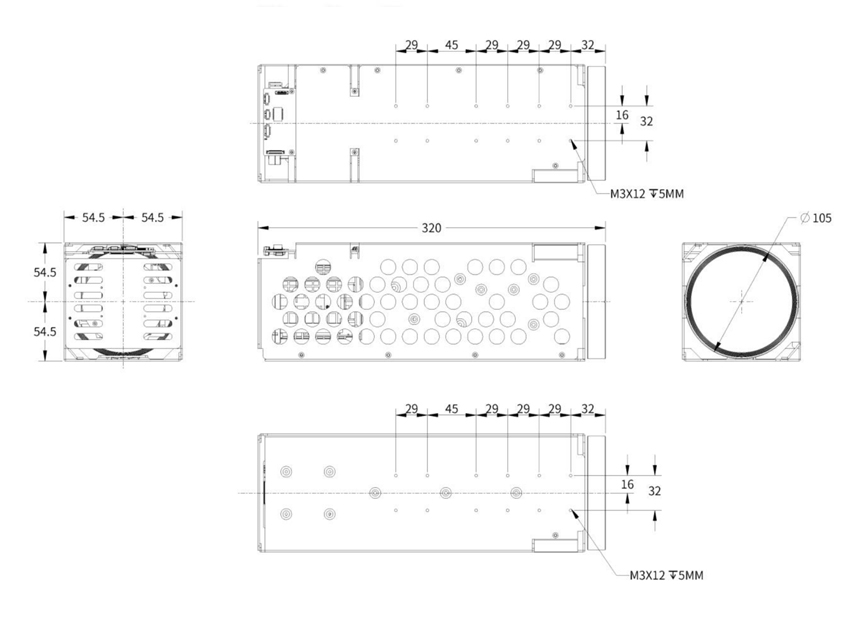

| Mga Dimensyon(L*W*H) | Tinatayang320mm*109mm*109mm | ||
| Timbang | 3.1kg | ||
Interface ng Network
| Uri | Numero ng PIN | Pangalan ng PIN | Paglalarawan |
| J2_4pin Ethernet Interface | 1 | ETHRX- | Adaptive Ethernet port, Internet RX- |
| 2 | ETHRX+ | Adaptive Ethernet port, Internet RX+ | |
| 3 | ETHTX- | Adaptive Ethernet port, Internet TX- | |
| 4 | ETHTX+ | Adaptive Ethernet port, Internet TX+ | |
| J3_6pin Power at UART Interface | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | TTL Level 3.3V, Pelco Protocol | |
| 4 | TXD1 | TTL Level 3.3V, Pelco Protocol | |
| 5 | RXD0 | TTL Level 3.3V, Visca Protocol | |
| 6 | TXD0 | TTL Level 3.3V, Visca Protocol | |
| J1_5pin Audio Interface | 1 | AUDIO OUT | Audio Out (Line Out) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Audio In (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
LVDS Interface
| Port | Numero | Pangalan ng PIN | Paglalarawan |
| J4_30pin LVDS Interface (Katulad ng SONY 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | DC output (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL level 3.3V, VISCA protocol, pareho sa TXD0 sa J3_6pin Port.Ngunit hindi makakonekta sa parehong oras. | |
| 19 | UART1_RX | TTL level 3.3V, VISCA protocol, pareho sa RXD0 sa J3_6pin Port.Ngunit hindi makakonekta sa parehong oras. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
